Aviationweb déjà vu                 Luchtvaart déjà vu Micro Light Aeroplanes

Aviasud AE-206 Mistral

OO-B70 PH-2S6
PH-2T5 PH-2W1
Aviasud AE-209 Albatros
OO-D24 OO-D43
Flugtechnik Herringhausen Vagabund
D-MSEW D-MVRK
Platzer Kiebitz
D-MPDG D-MPJM
D-MQYJ PH-3W2

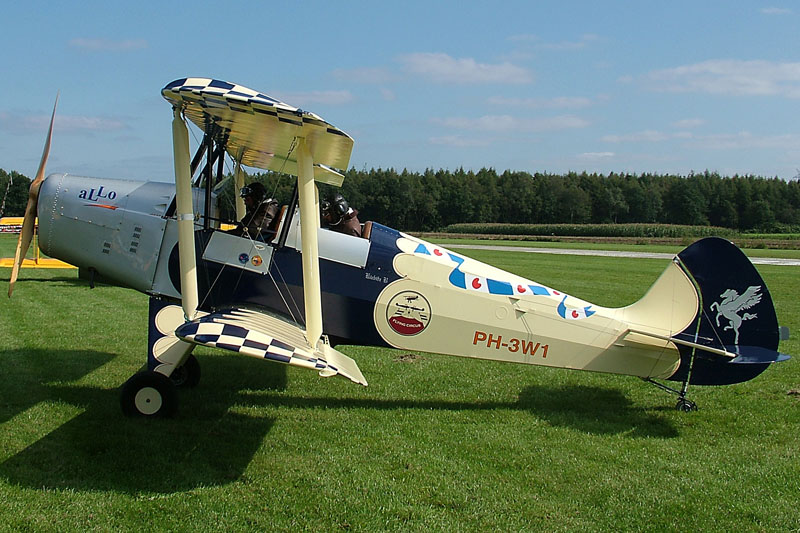

PH-3W1 Platzer Kiebitz B-450 NIS c/n 220 - MLA airfield Dankern near Haren (Ems) in Germany - 9 September 2006 MLA Flugplatz Haren / Dankern

The UL-biplane "Kiebitz" is a look-a-like with the 1927-built Focke-Wulf S-24 "Kiebitz" also known as the "Peewit". The modern "Kiebitz" was designed by Michael Platzer originally as an UL-biplane with a max takeoff weight of 330 kg. The UL-biplane "Kiebitz" is available in plan form since 1984. The UL-biplane Michael Platzer Kiebitz has been further developed from the 1984 "Kiebitz"; also knwon as Kiebits A into the Kiebitz-B (450kg) with a max takeoff weight of 450 kg. The Kiebitz has a steel-tube fuselage and tube-and-fabric wings. Powerplants up to 100hp can be used. The engine used on the Kiebitz determines the serie number of the Kiebitz: A - Göbler-Hirth F2703; A9 - Nissan / Platzer MA-12-P; B1 - Göbler-Hirth F2703; B2 - Rotax 462; B3 - Rotax 532; B4 - Rotax 582; B5 - Rotax 582; B6 - Limbach 2000; B8 - Sauer 2100; B9 - Nissan / Platzer MA-12-P; B10 - Henning Motor; B11 - Walter Mikron; B12 - Cloes / HC5; B13 - UL-Power 260i and B15 - Rotax 912. The Kiebitz B14 is reserved but the engine type is not yet known. The Nissan / Platzer MA-12-P engine of the Kiebitz A9 nd the Kiebitz B 9 is Platzer's own modified Nissan Micra car engine. Over 400 Kiebitz biplanes already have been build by homebuilders throughout the world. When You want a new Kiebitz, You have to build it Yourself in accordance with the drawings! It costs a lot of perseverance: building a Kiebitz will take about 1500 hours. If You lose courage: it is possible to purchase some parts, like the under-carriage.

The Platzer Kiebitz B-450 NIS s/n 220 was registered PH-3W1 in the Netherlands on 14 December 2004. This Kiebitz B9 is powered by a Nissan / Platzer MA 12P engine. Kiebitz B9 PH-3W1 was photographed at Ultraleicht Flugplatz Dankern near Haren (Ems) in Germany.

page last updated: 17-09-2006
