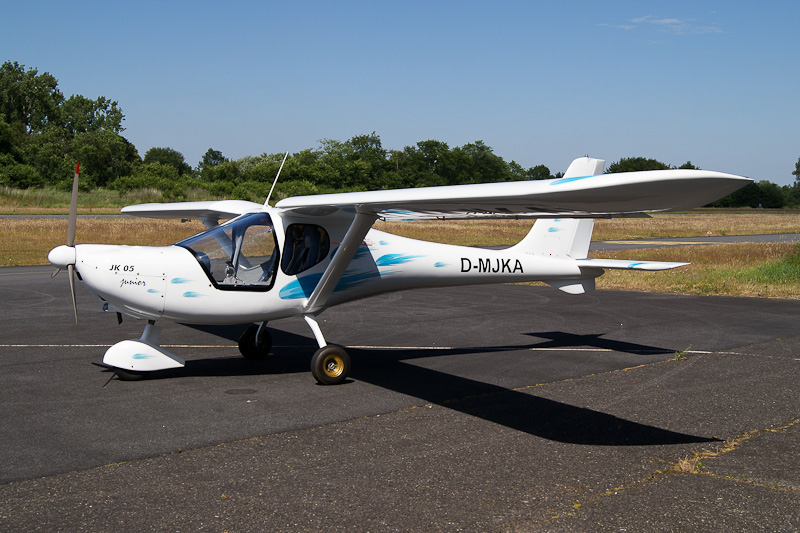

D-MJKA Ekolot JK-05L Junior c/n 05-05-08 - Nowas Flug - Flugplatz Leer-Papenburg in Germany - 7 July 2010 Flugplatz Leer-Papenburg (EDWF)

The Ekolot JK-05L Junior is an in composites built, strut supported high-wing, side-by-side two-seater, ultralight aircraft designed and produced by Ekolot in Krosno, Poland. The JK-05L was designed to comply with the Fédération Aéronautique Internationale microlight rules. The Ekolot JK-05L Junior was certified in Poland in February 2010. The aircraft is supplied as a kit for amateur construction or as a complete ready-to-fly aircraft.The composites used for the construction are based on vinyl-ester resins, reinforced by glass and carbon fibers. The fuselage has a form of integral self-supporting structure, strengthened locally with Parabeam woven fabric. The width of the cockpit is 1,2 mtr. The seats in the cockpit are made of composite. The canopy is made of two transparent doors made of polycarbonate, which are opened upward. Their hinges are situated along the axis of symmetry of the plane. Structure, which connect both wings is a two dimension framework made of steel pipes. The fin is integral part of the fuselage. The tricycle landing gear consists of two wheels with brake system mounted on legs made of composite and a steerable nose-wheel coupled with a rudder. Optionally, the wheels can be covered with composite fairings. Wings have rectangular shape with characteristic narrowing near the fuselage to improve visibility from the cockpit. The plane is powered by a 80 hp 4-cylinder-4-stroke liquid-cooled / air-cooled Rotax 912 UL engine.

The 2008-built Ekolot JK-05L Junior s/n 05-05-08 was registered D-MJKA in Germany. On 7 July 2010, Ekolot JK-05L Junior D-MJKA was seen in service with Nowas Flug GmbH at Flugplatz Leer-Papenburg.
